High Safety :
– “2+2” fire prevention and control measures: The design adopts the modular built-in fire suppression & container firefighting system with multiple configurations.
– Insulation strength of the system is sufficient, and no breakdown or flashover in the 5kVdc withstand test. The DC circuit is equipped with multi-level disconnections, which are multiple configurations.
– Large-scale fire impact assessment test results were good, with no propagation to the adjacent container.
Trusted Energy Storage System
Manufacturer for Customized ESS Integration
Solid and Reliable :
– Adaptive design, module structure retention, and internal force release optimization in the whole life cycle.
– Excellent steel structure stability, 2 times lifting load, 10 times ballast performance recognized by the classification society.
– The overall structural stability meets lEEE693 high-level earthquake tolerance.
Extremely Long Life :
– Thermal management design adopts centralized cooling, multistage shunt, and parallel flow channel. Throttling control. The temperature difference of cells in the module is 2 °C, and that is 3℃ for the container level.
– Protection is reliable and durable. The protection grade of the enclosure is IP55, the anti-corrosion grade is C4/C5, and the high voltage module is IP67.

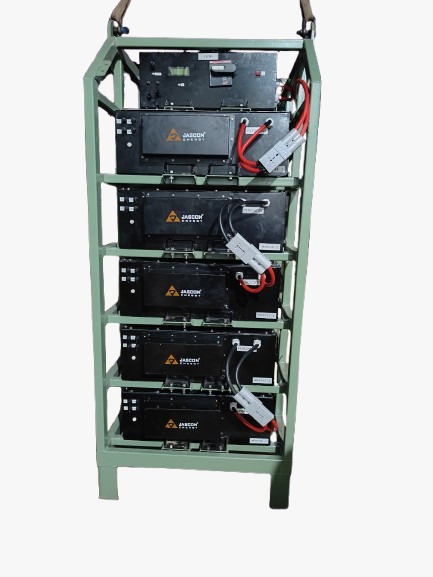

Specifications
| Items | Technical Indicators |
| Cell Chemistry | LiFePO4 (LFP) |
| Assembly Configuration | 5P120S |
| Nominal Voltage | 384Vdc |
| Voltage Range | 336-432(Vdc) |
| Nominal Energy | 192kWh |
| Dimension | 1850 * 940 * 1700mm |
| Weight | 2.3t |
